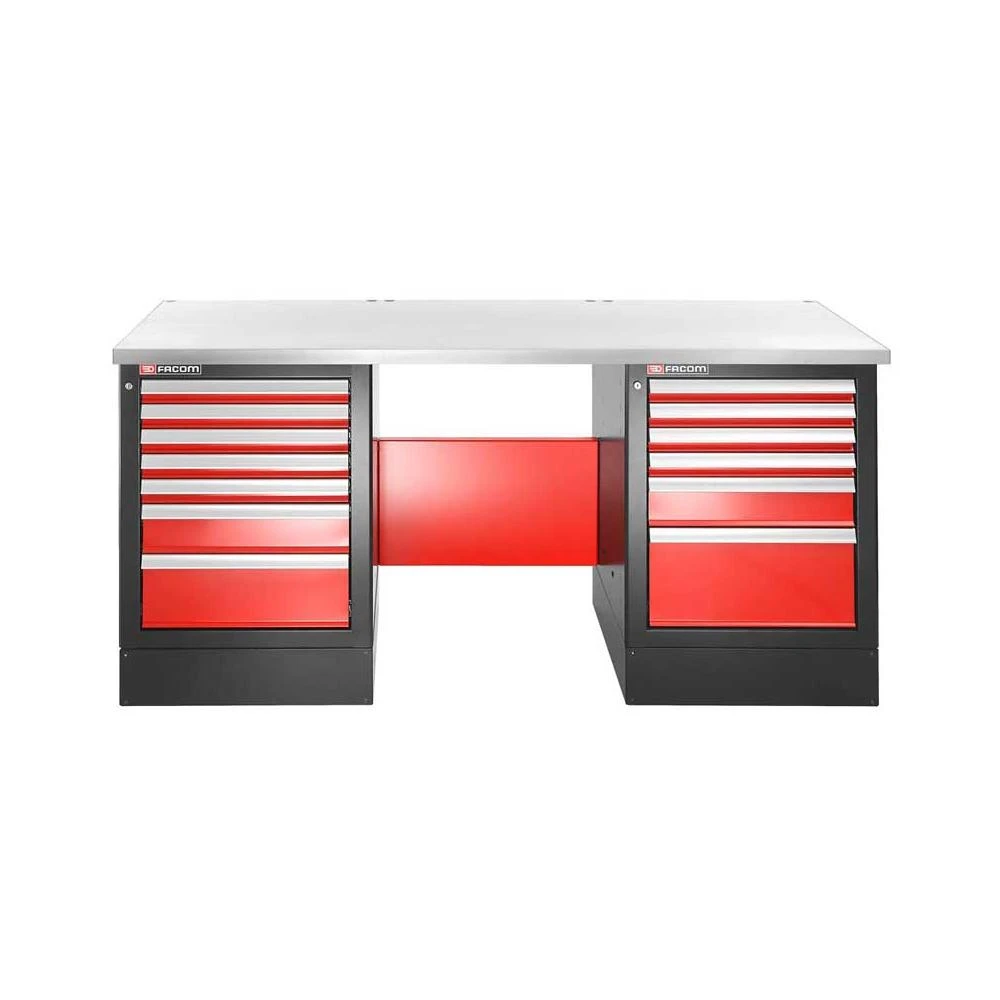

Description
- One 6-drawer unit JLS2-MBS6T: β 4 drawers 60 mm high, 1 drawer 130 mm high, 1 drawer 270 mm high.
- One 7-drawer unit JLS2-MBS7T: β 5 drawers 60 mm high, 1 drawer 130 mm high, 1 drawer 200 mm high. β Drawer useful size: L.569 x D.421mm. β Single keylock. β Fitted with 4 jack-mounted swivel feet for perfect adjustment. β Overall dimensions: L.722 x D.701 x H.810 mm.
- 1 JLS2-PSH foot: β Foot made of epoxy painted sheet steel (thickness 12/10ths). β Fitted with jack-mounted swivel feet for adjustment providing complete stability irrespective of the type of floor. β Dimensions: L.100 mm x H.985 mm x D.650 mm. β Colour black 9004.
- 1 low unit raising base JLS2-BASEMBS: β Base in 12/10th steel sheet. β Dimensions: L.720 mm x H.180 mm x D.699 mm. β Colour black 9004.
- One JLS2-PBST3 worktop: β Panel made of multi-ply beech of thickness 40 mm covered with 10/10th 304 L brushed stainless steel for improved impact and heat resistance (edge also covered β painted metal cover for the sides). Sides will be protected by a finishing painted metal sheet. β Fast and easy assembly thanks to pre-drilled metallic inserts positions. Capable of supporting loads: 1 ton.
- A JLS2-TRBB3 cross-beam β Multifunction cross beam: connecting, reinforcement and storage space, 2 possible positions: horizontal or vertical. β Made of epoxy painted steel sheet (thickness 12/10ths). β Colour red 3020.
Overall Dimensions and weight :
- Length: 2182mm
- Depth: 750mm
- Height: 1030mm
- Weight: 263Kg
